Clusters

A cluster groups one or more GPU machines so they can serve models together. You create it in the console, it starts on its machines, and from then on you can add machines to it, drain one, take one out, switch its runtime, and stop or start it. Models are deployed onto a cluster by an administrator (see Deployments).

AI Infrastructure → Clusters: one running cluster with two machines and two accelerators, and Create a cluster at the top

Before you start

  • The machines are added and healthy (see GPU machines).
  • Machines that should share a cluster can reach each other on one network. See Network and ports.
  • A model runs on one kind of GPU at a time. Machines of different kinds can share a cluster, but no copy of a model spans both kinds. If machines cannot reach each other, or should run different models anyway, give them a cluster each: the gateway sends requests to whichever cluster serves the model.

Create a cluster

  1. Open AI Infrastructure → Clusters and select Create a cluster.

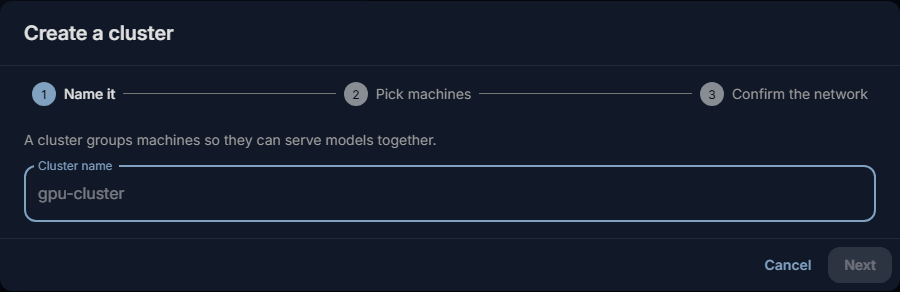

    The Create a cluster wizard on its first step, Name it, followed by Pick machines and Confirm the network

  2. Name it: enter a Cluster name, such as gpu-room, and select Next.

    Create a cluster, step Pick machines: each machine with its address, accelerators and state, here both marked already in another cluster

  3. Pick machines: tick the machines that will serve models. With more than one machine, choose Which machine leads the cluster (the head). Select Next.

  4. Confirm the network: check the network the console suggests: a VPN interface can look like a dedicated link. Pick another if the suggestion is not the network you want the cluster on.
  5. Select Create cluster.
More about picking machines and the network

One machine makes a fine cluster; you can add more later. For each machine the wizard names the runtime it will run. For the head, the machine with the most accelerators is suggested.

On Confirm the network, the console lists the networks the machines share, tests them, and suggests the fastest one that is not shared with management traffic.

The cluster page opens on Starting, and shows a bar per machine while the machines get the runtime image. The cluster reaches Running, with every machine up and its accelerators counted, and offers Deploy a model. If the totals are lower than you expect, a machine did not join: open it and read its status.

What the machines do while the cluster starts
  1. They get the runtime image and check it. It comes from the server once; the first machine that has it passes it on to the others over the cluster's network. A dropped transfer resumes where it stopped, when the machine has room on disk for a copy of the image.
  2. They start Ray in it: the head first, then the other machines join.
  3. They report what they found.
You see What to do
A machine in the list marked as already in another cluster Take it out of that cluster before you pick it.
"No certified runtime image runs on …" There is no runtime for that kind of machine; remove it from the selection.
"These machines cannot form a cluster yet." The network step found no network all of them share. Check their cabling and addresses, then try again.

The cluster's page

Open Clusters and select the cluster.

A running cluster's page: its state and actions at the top, a banner saying one deployment failed to start, the summary, and how its two machines are wired

Part What it holds
At the top Its state, Check now (look at the cluster at once instead of waiting for the next check), Stop or Start, Add machines, Deploy a model and Delete.
A summary Machines up, Accelerators, Free accelerators, Deployments.
How this cluster is wired The machines and how they connect. Select a machine to see what it runs, and to Drain it or Remove from cluster.
Models on this cluster Each deployment with its state and copies.

When a deployment on the cluster fails to start, a banner at the top says so, with the message the engine gave. Failures and logs says what such messages mean. | Cards | The Runtime, Model traffic, Traffic between machines and Where the machines get models. | | Advanced | The Health checks the server ran, Change the network, and the raw status. |

Further down a cluster's page: the Model traffic, Runtime, Traffic between machines and Where the machines get models cards, Models running here without a deployment, and Advanced opened on its health checks

Cluster state Meaning
Starting Getting the runtime onto the machines and starting Ray
Running Every machine up; models can be served
Needs attention Something is wrong, and the page says what; Fadenstack is checking or repairing it (see Health checks)
Failed It could not start, or could not be repaired; the page says why
Stopped Stopped on purpose; its machines and network are kept

Stop, start and delete

Action What it does
Stop Stops the cluster on its machines and frees their GPUs. Its machines, network and deployments are kept.
Start Brings it back and applies its models again.
Delete Removes the cluster. A cluster that still has deployments cannot be deleted: delete them first, so no model is left running on the machines. A running cluster is stopped first, then deleted; the machines stay enrolled and can join another cluster.
Deleting a cluster whose machines are all offline

If the cluster's machines are all offline, it cannot be stopped from here; it is deleted anyway, and what it left on a machine is replaced the next time that machine starts a cluster.

Add machines to a running cluster

Add machines to gpu-cluster: here there is no machine outside the cluster yet, and each machine is checked first

  1. On the cluster's page, select Add machines.
  2. Tick the machines to add. Machines that cannot join are listed with the reason, and cannot be ticked.
  3. Select Add.

The copies already running stay where they are. New copies and new models can use the new machine, which receives the models' files when it needs them. To put a model on the new machine, an administrator scales its deployment up; changing the number of copies does not restart the copies already running (see Deployments).

Reason shown What to do
It is offline. Start the machine or its agent
It is in maintenance. Exit Maintenance on the machine's page
It is being drained. Stop the drain on the machine first
It belongs to the cluster … ; remove it there first. Take it out of the other cluster
It has no address on the cluster's network (…). Connect the machine to that network, or give it an address there
The cluster runs Ray with TLS, which needs agent … or later on it. Update the machine's agent (re-run the install line)
Machine could not reach the cluster's head on … The machine has an address on the network but cannot reach the head there: check cabling, routes and firewalls
More about adding machines

Each machine is checked first: it must reach the cluster's head on the cluster's network. Then it gets the runtime image (from a machine of the cluster that has it), starts its container and joins Ray, the way the cluster's first machines did.

A warning that the machine is of another kind than the head (another architecture) is not a refusal: it runs another runtime image, and no copy of a model may span both kinds.

Drain a machine

Draining moves a machine's model copies to the cluster's other machines and keeps new copies off it: before maintenance, a reboot, or taking it out of the cluster. You see a plan first, and nothing stops unless you agree.

The cluster's page with gpu-02 selected: its status, the deployments on the cluster, and Drain and Remove from cluster

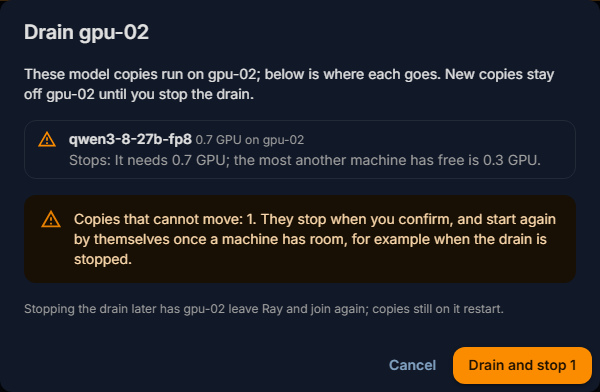

The drain plan for gpu-02: one copy stops because no other machine has enough free GPU, and the button reads Drain and stop 1

  1. On the cluster's page, select the machine, then Drain. (Or Drain on the machine's own page, or Enable drain in the Machines list.)
  2. Read the plan. For every copy on the machine it says either Moves to a named machine, or Stops, with the reason.
  3. Select Drain. If copies would stop, the button says Drain and stop with their number: you are agreeing to that.

A copy that cannot move says why:

Reason in the plan What it means
The cluster has no other machine that can take it. No other machine is up and in the cluster
No other machine holds this model's files yet. The copy could not load anywhere else
It needs … GPU; the most another machine has free is … GPU. Not enough free accelerators elsewhere
It needs about … of GPU memory; the most another machine has free is … Not enough free GPU memory elsewhere
When a copy moves, and when stopped copies come back

A copy moves only when another machine of the cluster holds the model's files and has both the accelerator share and the GPU memory the copy needs free. Each moving copy keeps serving until its replacement on the other machine is up; nothing is stopped early.

Copies you agreed to stop start again by themselves once a machine has room, for example after the drain is stopped.

While it runs, the cluster's page shows the drain with its state: Starting the drain, Moving copies, Drained. A drained machine runs nothing and takes nothing new; do your work on it.

Stop drain (on the cluster's page, or Stop Drain on the machine's page) ends it: the machine leaves Ray and joins again, and copies still on it restart. Ray has no other way to undo a drain.

The head cannot be drained while the cluster runs: the cluster cannot run without it. Stop the cluster instead, or drain the other machines. Draining needs a recent agent on the machine and on the head; the plan names the machines to update.

A copy has not moved after 30 minutes. The drain says so ("… have not moved after 30 minutes: the replacement did not start"). Read the deployment's errors, or stop the drain.

Remove a machine from a cluster

  1. On the cluster's page, select the machine, then Remove from cluster.
  2. Read the plan: it is the drain plan, followed by the machine leaving.
  3. Select Remove (or Remove and stop with the number of copies that would stop).

The machine is drained first, then it leaves Ray and the cluster (Leaving the cluster). It stays enrolled and can join another cluster. Cancel removal stops it while it is still draining.

On a stopped cluster nothing runs, so the machine only leaves the record. To take out the head, stop the cluster first.

Health checks and repairs

Every minute, Fadenstack looks at each running cluster and each serving model, and again whenever a machine reconnects. It restarts nothing unless something is wrong, and it looks twice before it does. What it repairs by itself, and what you see meanwhile, is in Failures and logs. In short:

When What happens
A machine dropped out of the cluster It is taken out of Ray and joined again; copies on the other machines keep serving.
The head stopped It is restarted with the whole cluster, and the models are applied again.
Three restarts failed The cluster reads Failed and is tried again every 15 minutes. Try again on the cluster's page starts over at once.

Advanced → Health checks lists the checks and what they found.

Runtime

The Runtime card: the runtime the cluster runs, whether it is certified, and Switch to with Switch

The Runtime card shows the image the cluster's machines run, Ray and vLLM together, and whether a newer certified one is available. A cluster keeps its runtime until you switch it, which restarts every model on it. See Move a cluster to another runtime.

After an upgrade, the card can say that this release starts the runtime with new settings, such as where models and caches are mounted. The cluster keeps serving as it is; select Apply and restart when you want the new settings, which restarts the cluster and loads every model again.

Encryption

The Model traffic card, Encrypted: the gateway reaches the cluster's models over mutual TLS

Model traffic: the gateway reaches the cluster's models over mutual TLS. A cluster started before this protection existed shows "not encrypted"; Encrypt model traffic moves its models behind TLS, and they load again.

The Traffic between machines card, Encrypted, with Switch off

Traffic between machines: a new cluster encrypts Ray's traffic between its machines with TLS from the start. A cluster created before that shows "not encrypted"; Encrypt turns it on, and Switch off turns it off again, which sends Ray's traffic across the network unencrypted. Either restarts the cluster and its models. Every machine needs a recent agent (0.1.18 or later) and has to run Ray in the agent's runtime container. A machine that runs Ray on the host instead cannot apply TLS, so the cluster refuses it with a message naming the machine: run the agent's runtime container there, or switch TLS off for the cluster on purpose.

Both are explained in HTTPS and trust.

Where the machines get models

By default the server downloads a model and each machine copies it from the server, so the machines need no internet access. The Where the machines get models card can switch a cluster to Machines download models themselves: each machine downloads from Hugging Face into its own store, with the server's Hugging Face token for a gated model. This needs every machine to reach Hugging Face; the card checks them and names any that cannot. The change applies to the next model placed on the cluster.

Models running without a deployment

A deployment deleted while its cluster's head machine was away can leave its model running: it holds GPUs and still answers at the gateway. The cluster's health check, every minute, notices such models, and the card Models running here without a deployment then says how many it found. Select Look for them to list them, then for each:

  • Take over manages it again as an ordinary deployment: keep it, or delete it properly.
  • Remove deletes it on the cluster and frees its accelerators. Requests to it at the gateway fail from then on. A model's copies can take a minute to stop; select Look for them again to confirm it is gone.

When it does not work

You see What to do
The cluster fails to start with Address already in use Something on a machine holds one of the cluster's ports. Free it (see Network and ports), then select Try again.
"This will not change by retrying …" The cluster waits instead of retrying, because the cause comes out the same every time; the most common one is that the server holds a different build of the runtime image than the cluster needs. Run faden runtime-images --check on the server, fetch what is missing, then Try again.
Other start failures, shown in the machine's own words They are retried with growing pauses. Fix the cause and select Try again to retry at once.
"The machines did not confirm the cluster stopped." Check that they are online, then stop or delete again.
