Existing vLLM servers

Many GPU machines already run vLLM before Fadenstack arrives: containers started by hand or by another tool. Fadenstack finds them on its machines and lets you put any running one behind the gateway, under a name, without touching the container.

A machine's page: its CPU, memory, disk and GPU, and the vLLM on this machine card with the vLLM containers found on it

Before you start

  • The machine running the vLLM container is added to Fadenstack (see GPU machines), with an up-to-date agent.
  • The container publishes its port on the machine (for example -p 8102:8000).

What is found

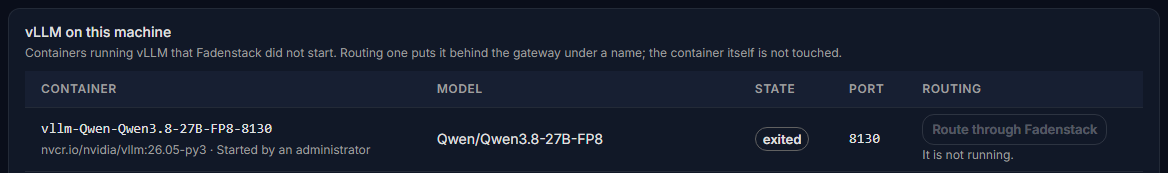

vLLM on this machine, on a machine's page: stopped vLLM containers, with Route through Fadenstack disabled because they are not running

Each machine reports, about once a minute, the vLLM containers Fadenstack did not start, running or stopped. Its page lists them under vLLM on this machine.

Containers Fadenstack started itself are not listed here; they are on the Deployments and Providers pages.

What each column shows
Column What it shows
Container Its name and image, and the tool that started it, from the container's labels: "Started by …", or a Docker Compose project
Model The model, what it is for (Chat, Embeddings or Scoring (rerank)), and the name it answers to
State Running or stopped
Port The port it is published on at the machine
Routing Whether it is routed through Fadenstack, and under which name

What the model is for comes from the container's vLLM flags. When the flags say nothing, it is guessed from the model's name and marked "guessed from the model's name".

What finding reads, and what never leaves the machine

Finding is read-only. The agent reads the container list and each container's configuration, nothing else. Two things never leave the machine: the container's environment variables, where tokens usually live, and secret values on its command line (--api-key and any flag with key, token, secret or password in its name are reported as ***).

Route one through Fadenstack

  1. Open Machines and select the machine.
  2. Under vLLM on this machine, select Route through Fadenstack in the container's row.
  3. Enter the Name clients use. The suggestion is the name the container answers to.
  4. Select Route through Fadenstack in the dialog.

Requests for that name now go to the container, as it runs. It appears on the Providers page, linked to the machine's page, which is where you manage it.

Nothing on the machine changes: not the container, its settings or its restart policy. Whoever started it still starts and stops it.

Stop routing takes the name away again; the gateway then answers that the model does not exist. The container keeps running.

More about a routed container

Chat offers it if it is a chat model; an embeddings model answers at /v1/embeddings, a scoring model at /v1/rerank. A request of the wrong kind is refused with a message that says where to send it. A routed container is listed with the remote providers (see Remote providers).

When the container stops

A routed container that stops is taken out of routing within about a minute ("Not routed while the container is stopped"), and put back when it runs again. Requests for its name fail in between.

What cannot be routed

Route through Fadenstack is disabled, with the reason below it, for a container that:

Reason shown What to do
It is not running. Start it the way it is normally started
Its port is not published on the machine, so nothing outside the machine can reach it. Publish its port when it is started
It asks for an API key, which routing a found container does not handle yet. Start it without --api-key, or deploy the model on a cluster instead
No answer from … Fadenstack asked it for its models and got no answer: it is still loading, or a firewall is in the way

Security

The gateway reaches a routed container over mutual TLS, through the same proxy on the machine that protects the models Fadenstack runs, on the container's port plus 20000 (8102 becomes 28102). Allow the server to reach that port, and the container's own port: the server asks the container there which models it serves, before routing it and when the console lists it.

Warning

The container's own port stays open: Fadenstack did not start the container and does not close it. vLLM often runs that port without any authentication. Firewall it so only the machine itself and the Fadenstack server reach it, or deploy the model on a cluster instead.

When it does not work

You see What to do
"This machine has not reported its containers." Its agent is too old to look for vLLM. Run the install line on it again to update it.
"No vLLM containers found." The machine reports what it runs about once a minute; give it a minute. Only containers running vLLM are listed.
